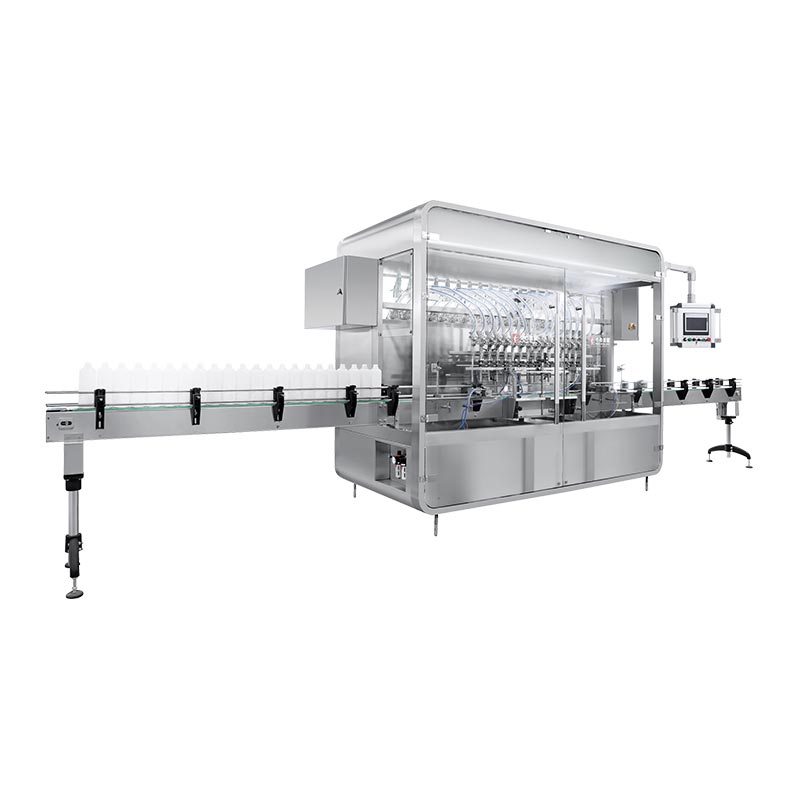

ZHBL-1922C PLC Controlled Piston Filling Machine

Home

ZHBL-1922C PLC Controlled Piston Filling Machine

ZHBL-1922C PLC Controlled Piston Filling Machine

Technical Parameter

mainunit dimension (L×W×H) : 2000mmX1100mmX2200mm

filling heads : 12

bottle  size Diameter:φ40mm~φ100mm   High:80mm~300mm

bottle mouth size:≥φ18mm

filling volume: 50ml~1000ml

production capacity: ≤6000 p/h

error range: 50ml-100ml≤±1ml 100ml~500ml±0.5% 500ml~1000ml±0.3%

power supply: 220V;50HZ

Power: 1.5kw

pneumatic (air-operated)source: 0.55Mpa~0.65Mpa

Share:

Facebook
Twitter
LinkedIn

Description

This is our newly developed filling machine, the whole parameters have matched the international advanced level, especially, the partial have exceeded the relative line aboard, also certified by the world famous chemical magnate.

 Feature:

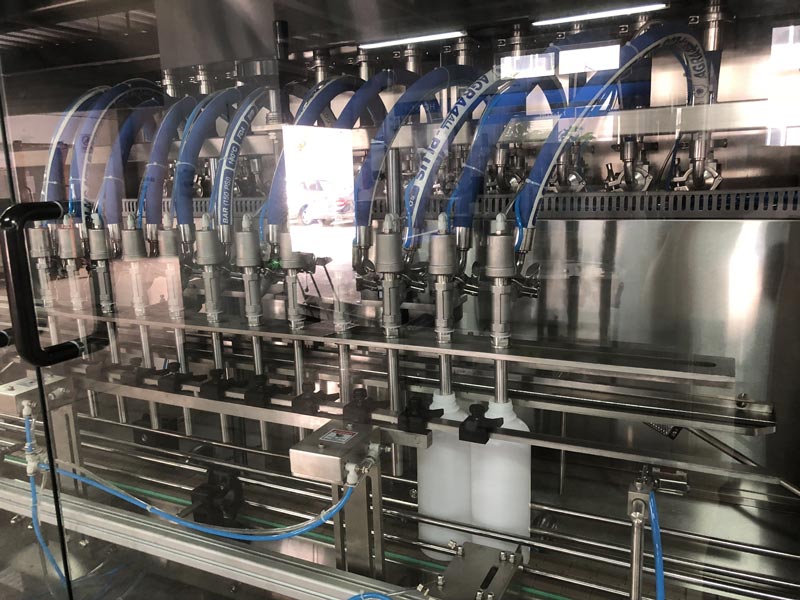

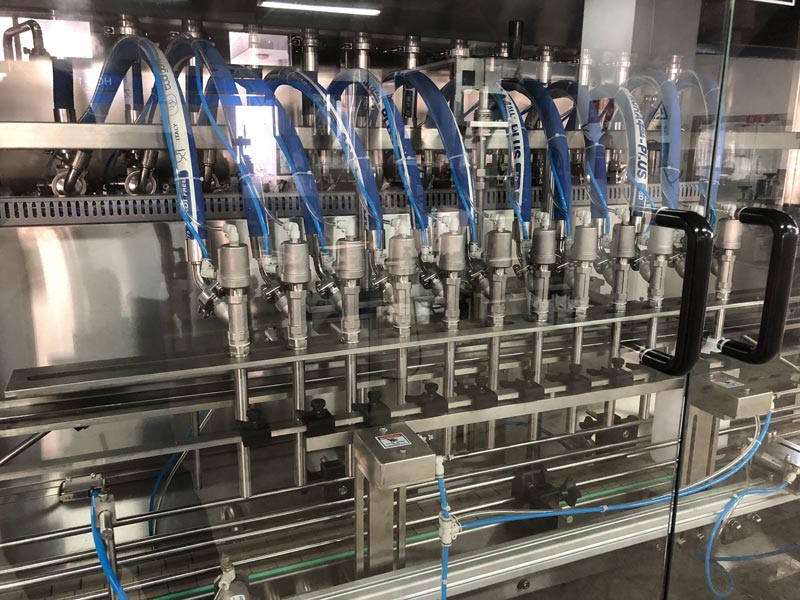

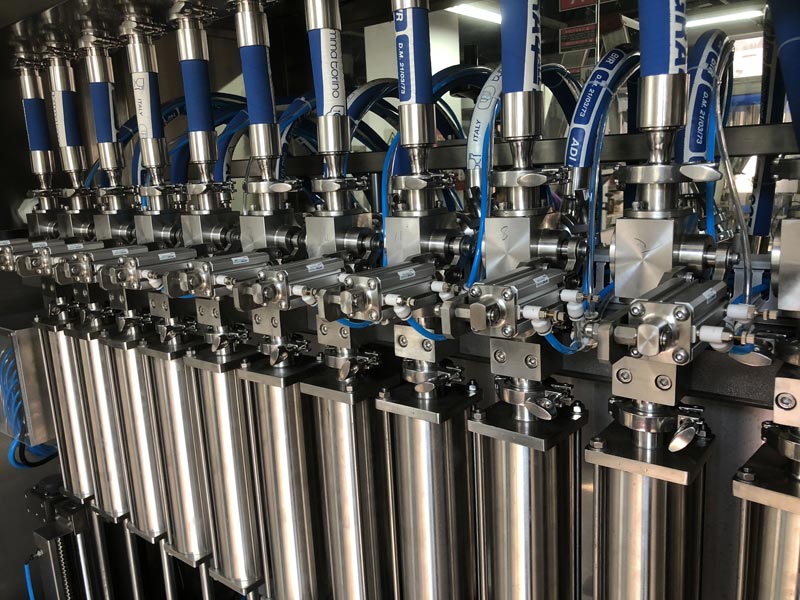

◆This is an inline piston filling machine for cream and liquid. PLC and touch screen ◆control panel are used to control material filling.
◆Accurate measuring, advanced structure, stable operating, low noise, large adjusting range, and fast filling speed.
◆It is also suitable for materials that are easily volatilizing, easily crystallizing or easily bubbling; strong corrosive liquid for rubber, plastic, high viscous liquid, and semi-flow liquid.
◆Adjust and meter value in the control panel of touch screen, meanwhile, each filling head also can be adjusted.
◆The external surface of this machine is made of excellent stainless steel.
Good appearance, apply to GMP standard.

Reviews

There are no reviews yet.

Be the first to review “ZHBL-1922C PLC Controlled Piston Filling Machine”

Your email address will not be published. Required fields are marked *

After-sales service

For all of our products will be guaranteed for 1 year after you receive the machines.We will give you long time technology supply.If customer required our engineer for help on site we promise that our engineer will be on site within 72 hours for domestic customers and one week for overseas customer.We do not do a one-off business, but to seek long-term cooperation, achieve a win-win situation.
