Description

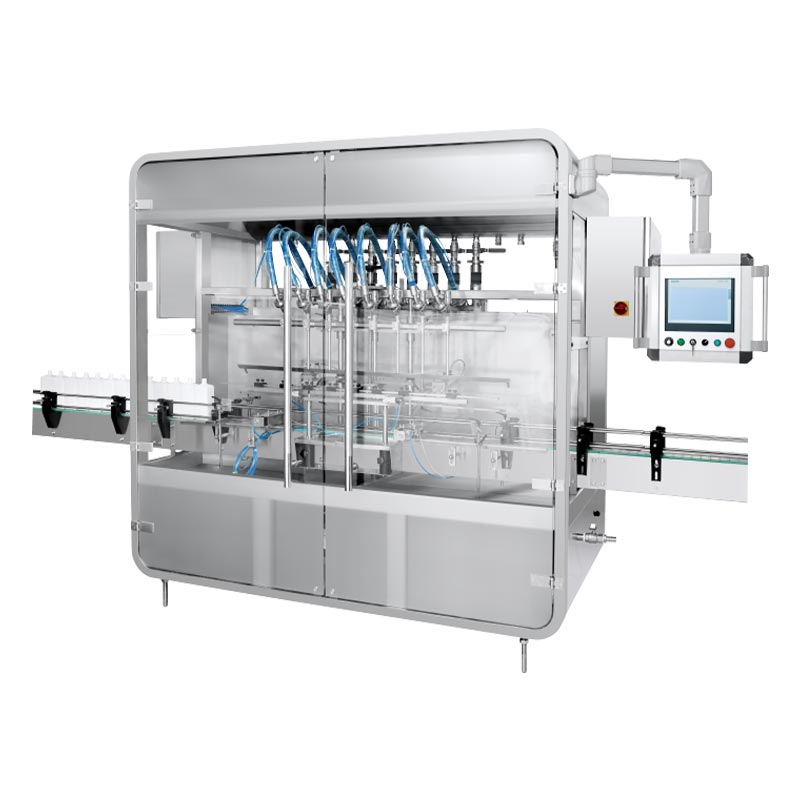

This type machine is suitable for the filling of 100g to 5000g liquid filling. It can finish a series of operations automatically such as counting bottle, bottles inlet ,weight filling and bottles outlet.
Major Characteristics：
This machine is the newest filling machine .It is characterized by large productivity, high automation, weight filling and high precision, especial suitable for SL,EC,SC,Edible oil ,lubrication. This filler is an ideal choice for foodstuff, pharmacy cosmetic and chemical ,pesticide factories.
1、This machine adopts PLC,touch screen control panel, convenient to adjust.

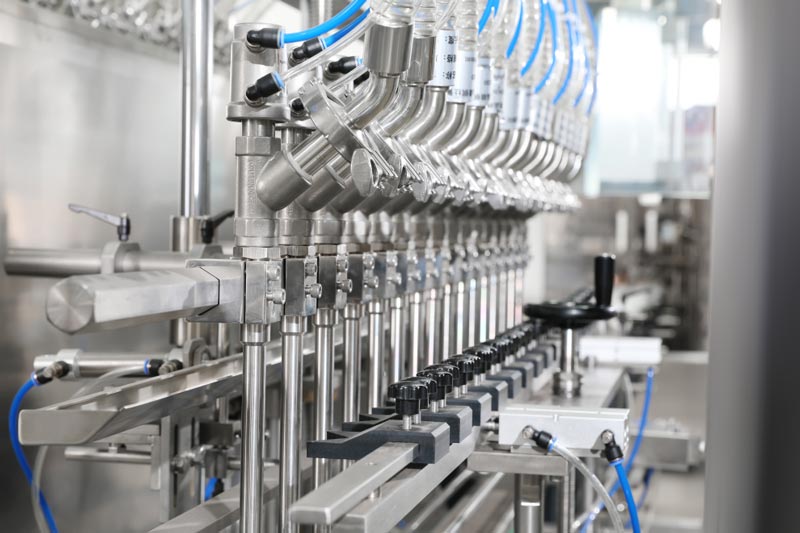

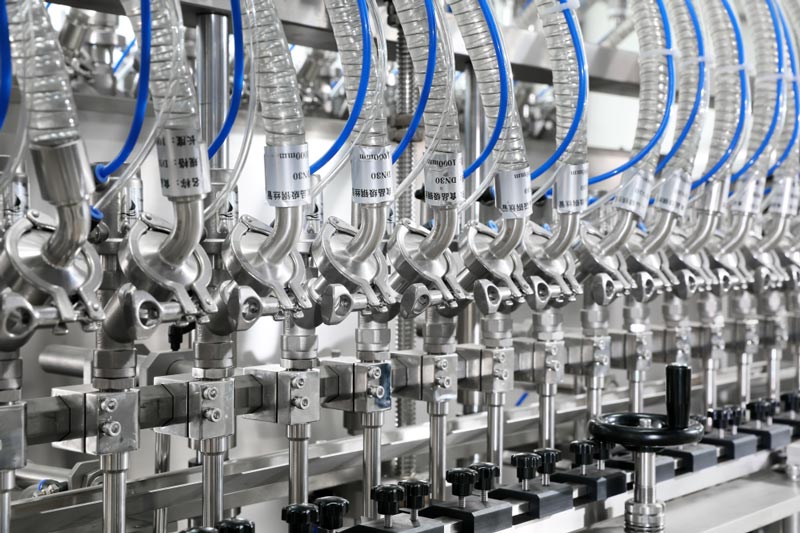

2、Each filling head has the weigh and feedback system. Each filling head can be regulated and micro adjusted.
3、Photoelectric sensor ,approximate switch and other electrics elements are the international famous brand. NO bottle no filling,the main host will trigger the alarm if there is any container blocked.
4、The whole machine gets GMP standard .It is easy to disassemble ,clean and maintain, and the parts which contact with the filling materials are made of high quality stainless .The whole machine is safe ,environmental,sanitary .It can adapts to various of working places.
The main technical parameters
| Type | Heads | Suitable bottles | Capacity(bottle/hour) | Precise | Size of Machine(mm) | Power(kW) | Power source | Air source | |
|---|---|---|---|---|---|---|---|---|---|
| DGP-CZ-26X | 24 | round bottle： | 1L:5000 | 1-5L≤±3g | 2400×1800×2500 | 5 | AC 220V; 50Hz | 0.6MPa | ＜Φ18 |
| height:180-280mm， | |||||||||
| diameter:Φ80-150mm. drum： | |||||||||
| DGP-CZ-20X | 20 | height:180-280mm， | 1L:4500 | 2400×1900×2500 | 5 | ||||
| DGP-CZ-18X | 18 | width:40-80mm， | 1L:3800 | 2200×1600×2500 | 4.5 | ||||
| DGP-CZ-16X | 16 | length:80-120mm， | 1L:3000 | 2200×1500×2500 | 4 | ||||
| DGP-CZ-12X | 12 | neck diameter≥Φ28 | 1L:2400 | 2000×1300×2500 | 3.5 |
