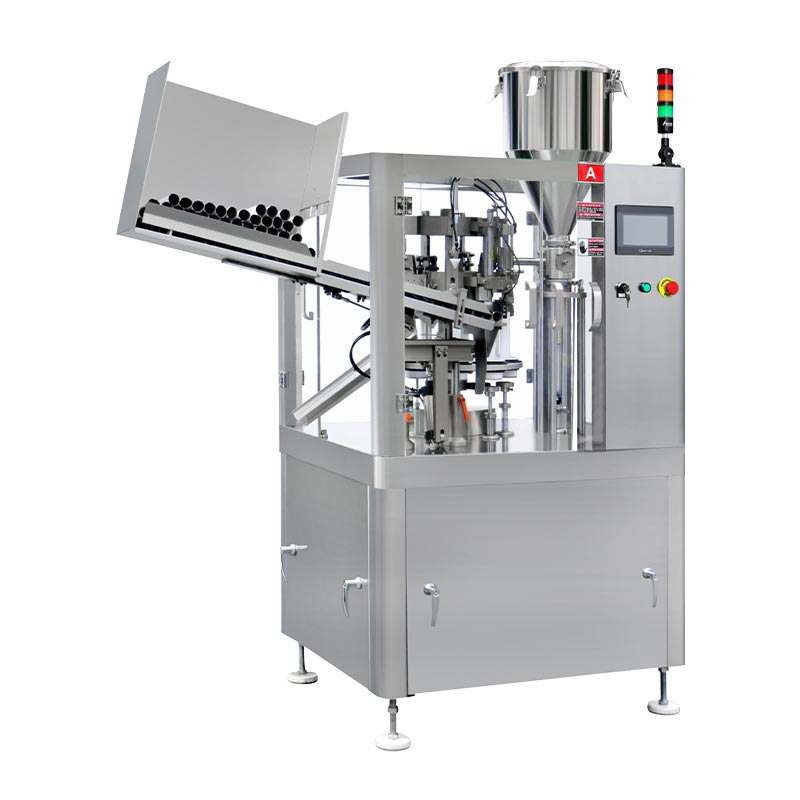

ZHF-60Z Metal Tube Filling and Sealing Machine

Technical Parameters

Filling volume：1-120ml/unit (Adjustable)

Filling accuracy: ≦±1﹪

Capacity: 2400-3600units/hour (Adjustable)

Tube diameter: Φ10-28 mm

Tube length: 50-180mm

Hopper volume: 40L

Equipped motor: 1.1KW:

Machine power: 2kw

Dimension: 1950×750×1850（mm）

Power supply: 380/220 (Optional)

Weight: About 900 Kg

Description
Reviews (0)

Description

Key Features

◆Compact Design

◆Driving Parts Fully-closed

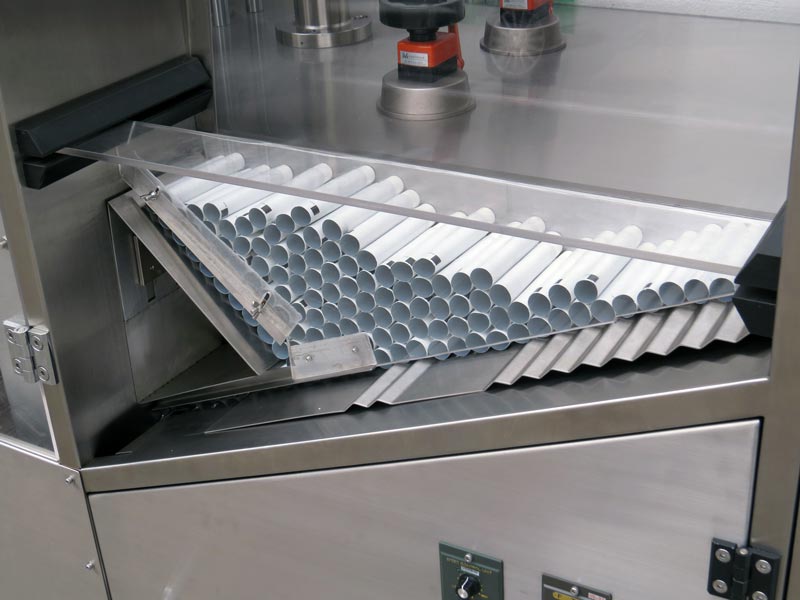

◆Pneumatic Tube Washing & Feeding

◆Intelligent Temperature Control and Cooling System

◆Easy to Operate and Adjust

◆316L Stainless Steel Contact Parts to meet GMP Standard

◆Safety Interlock Shutdown when Door is Open

◆Overload Protection Provided

◆Automated Working process from Tube Loading to Finished Products Output

◆Automatic Orientation Effected by Photoelectric Induction

Optional Devices

◆Chiller

◆Date Coding Embossing

◆Automatic Tube Feeding Magazine

◆Change Parts
