ZHCJ-4A Full-automatic Weight Filler

ZHCJ-4A Full-automatic Weight Filler

Technological parameters

1. Number of filling Head: 4
2. Filling range :5-25kg
3. Bottle size range : L:  160mm~360mm
W:  140mm~260mm
H:  250mm~500mm
(Min: 140 × 200 × 320 mm , Max: 260 × 290 × 500 mm)
4. Diameter of bottle mouth:≥Φ40mm
5. Power Supply: 380V/220 V, 50/60 Hz
6. the total power: 2.5 kW
7. Weight: about  1250 kg
8. measurement accuracy: ± 10g (Note: Filling accuracy depends on the viscosity of the material as well as the continuity and stability of the material supply);
9. Production capacity:  200-250 bottles/hour for 4 filling heads for 20L
10. Outline Dimension (L×W×H):2300mm×1300mm×2300mm for 4 head

Share:

Facebook
Twitter
LinkedIn

Description

Brief Introduction:

This weighing filling machine is for filling 5kg to 25kg liquid..

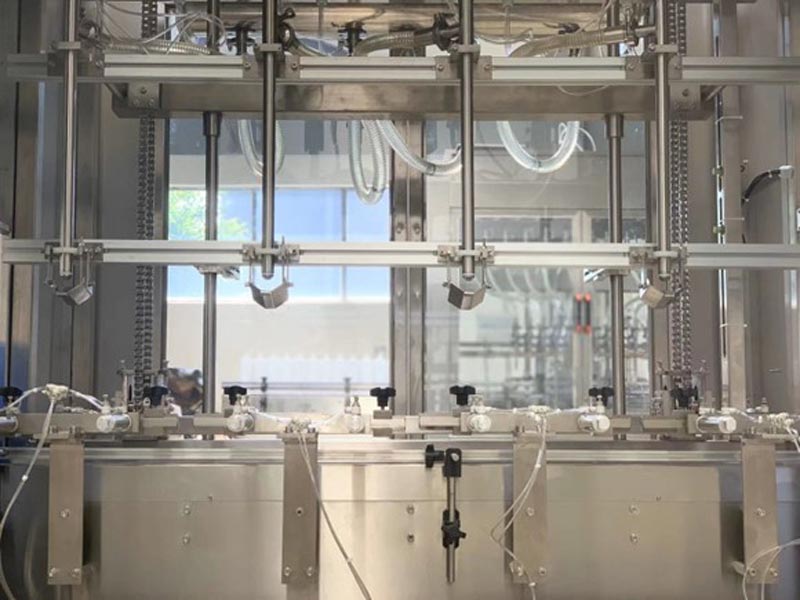

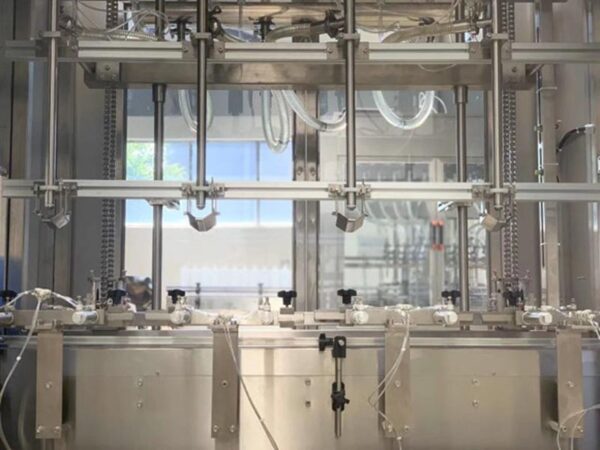

Each filling head has the weigh and feedback system, each filling head can be regulated.
This type filler adopts PLC to control, touch screen control panel.
It applies dive method to fill and it reduces foam.

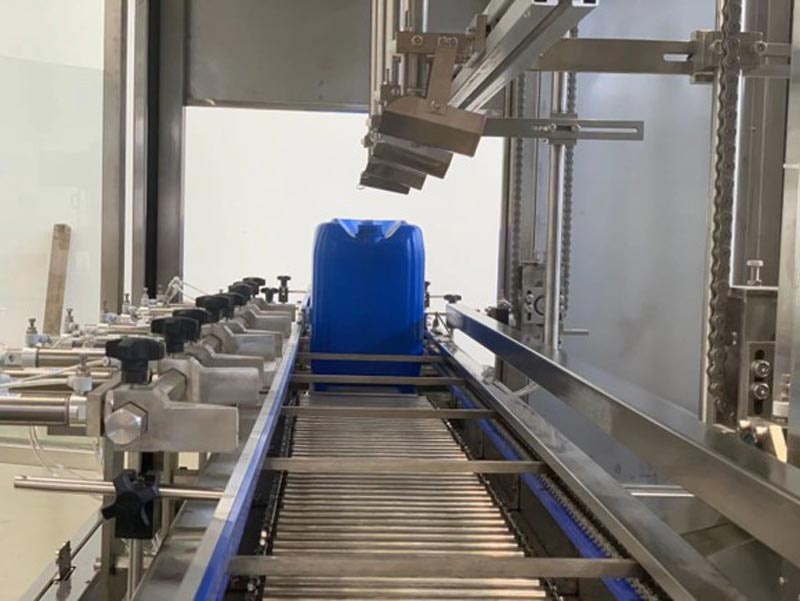

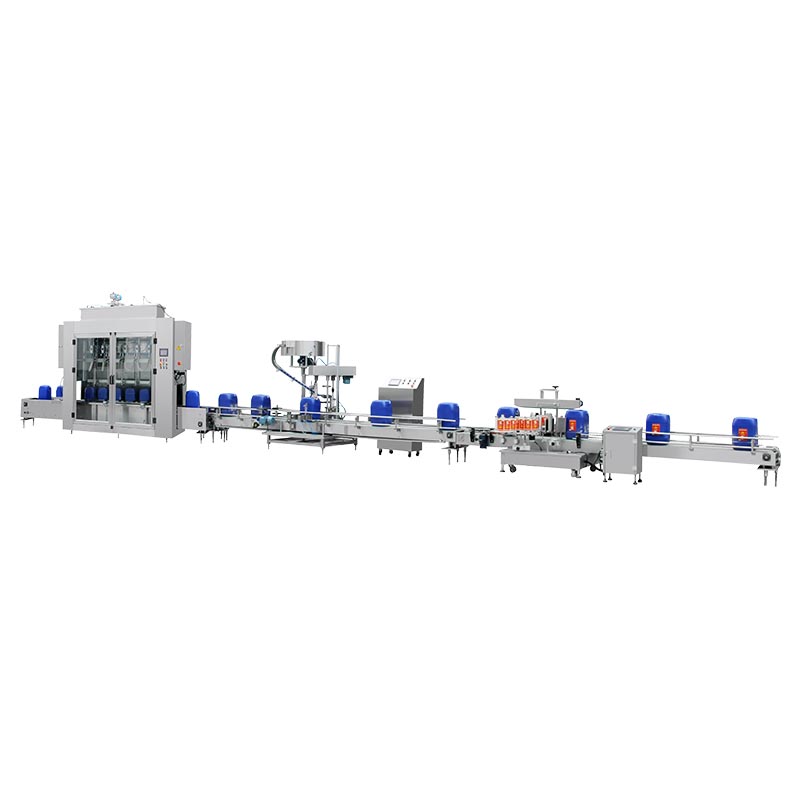

It automatically achieves counting inlet bottle, gravity filling, and bottle outlet. It is especially good for filling SL, edible oil and lubrication. It is a nice choice for foodstuff pharmacy, cosmetic and chemical industries.

Each filling head has the weigh and feedback system, each filling head can be regulated.
Photoelectric sensor, approximate switch and other electric elements are of the international famous brands. It ensures no container miss filling. The host machine will alarm if there is any container blocked.
