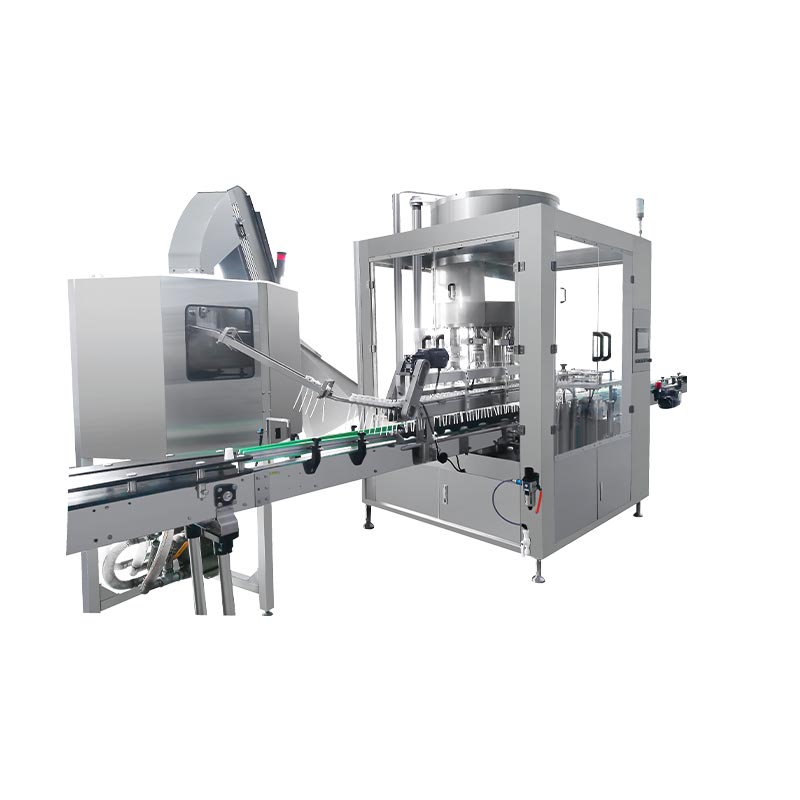

SP-6 Pump Capper

Major Technical Parameters:

Overal dimension(L×W×H):2000mm×1600mm×2600mm
Machine weight: 4500Kg
Suitable pump caps(can be customized)
Diameter of pump cap: 30mm
Length of pump cap: ≤250mm
Number of capping heads: 8(can be customized)
Capacity:≤5000containers/hour
Torque control: ±0.3Nm
Qualified rate of capping: ≥98%(Container mouth center deviation less than 1mm, Container mouth face height deviation less than 1mm)
Power supply: AC 380V,50Hz
Machine power: 4Kw
Air operated source: 0.6Mpa clean and stable compressed air

Share:

Facebook
Twitter
LinkedIn

Description

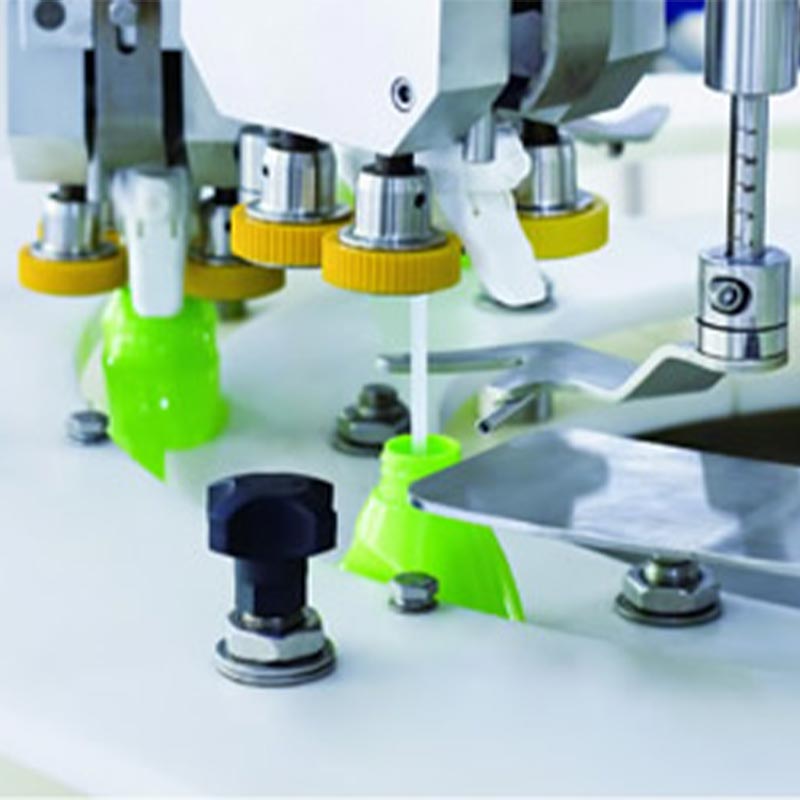

1. Four claws structure, obtained many patent on technology, suitable for pump caps, duck mouth caps, trigger caps with straw.
2. PLC controlled ,integrated cap sending ,grasping ,capping ( can affiliate with automatic cap sorting machine)
3. Automatic inlet cap and bottle position-setting and orientation, adjustable torque control.
4. Gentle manipulation, no scratch and injury to caps and containers
5. Easy changeovers, one line capable of several products
6. Connected with filling machine and labeling machine easily
7. Module structure, manipulate on the touch screen, easy maintenances
8. Suitable for containers made of PET/PP/PE/HDPE and so on
9. Production capacity can achieve 4000-8000b/h, higher speed can be customized.
10. Applicable in cleaning agent, nebula , disinfectant and many other daily chemical products.
